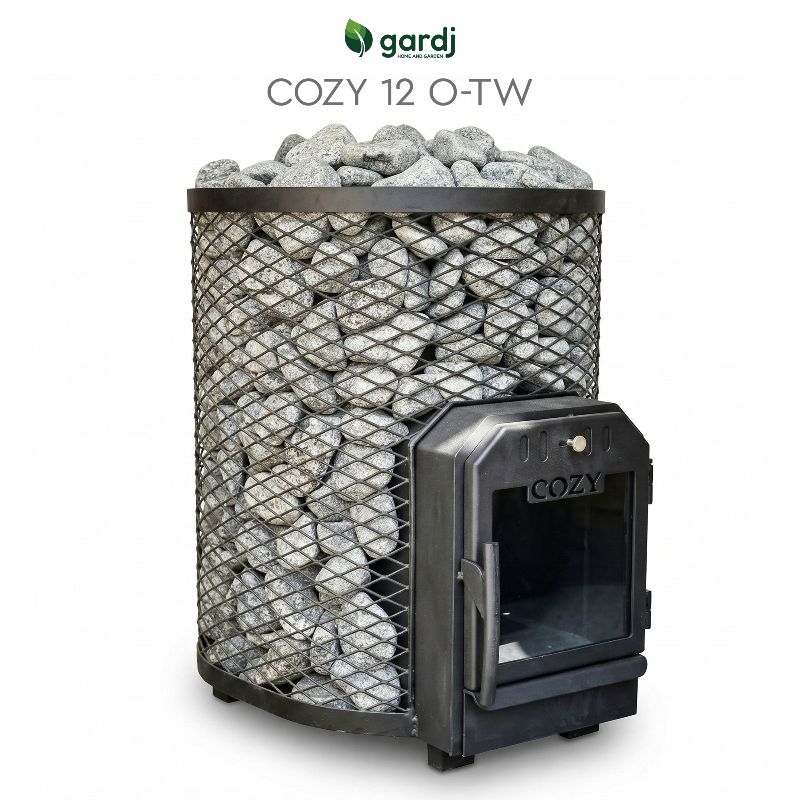

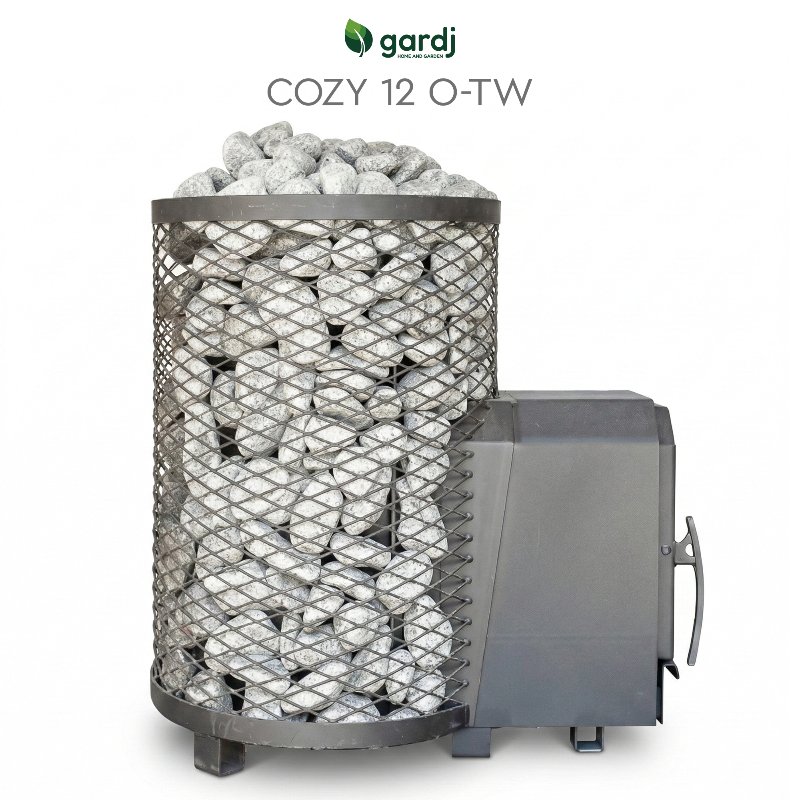

The
11.5 kW cylindrical grid heater is a high-quality wood-burning sauna heater developed for
spacious barrel saunas and QUADRO saunas. It combines soft steam, a striking design and
clean, efficient combustion. With an output of
11.5 kW, this cylindrical grid heater is suitable for sauna cabins of
approximately
6 to 12 m³ and is an excellent choice for customers looking for
an efficient, high-quality wood-burning solution.
Suitable for
- Barrel saunas 240 cm
- Barrel saunas 340 cm
- QUADRO saunas 240 cm
- QUADRO saunas 340 cm
- large outdoor saunas
Key benefits
- CE certified — proven safety and quality.
- Large stone capacity (100 kg) — provides soft, pleasant, long-lasting steam.
- External firebox with glass door — keeps the sauna cabin clean and lets you watch the fire from the adjoining room.
- Small safety clearances — only 17 cm from wooden walls, ideal for timber saunas.
- User-friendly details — air regulator above the glass, enclosed ash drawer and a large cleaning opening.

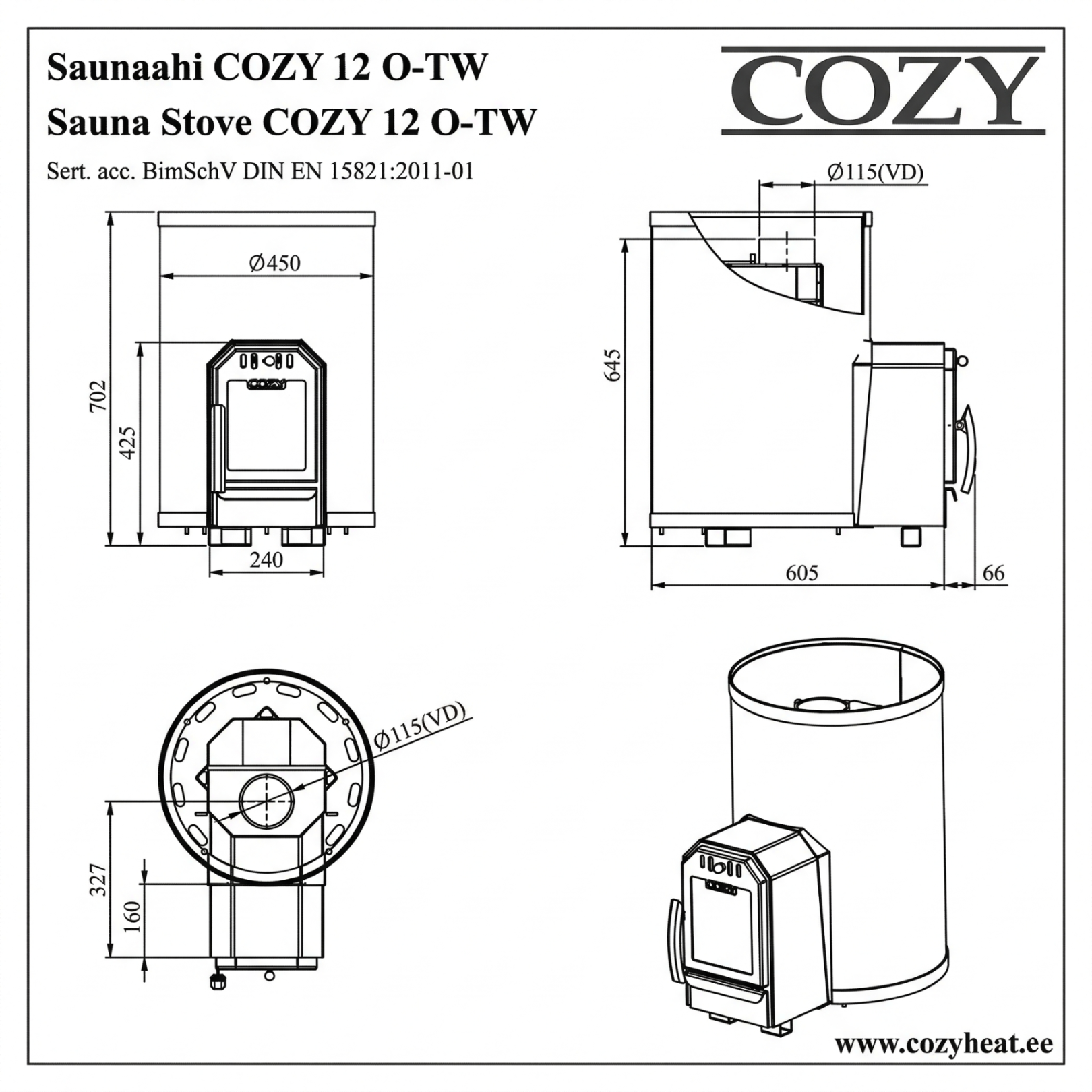

Technical specifications
| Heater type | Wood-burning, cylindrical grid heater |
|---|
| Output | 11.5 kW |
|---|
| Firebox position | External, through the wall |
|---|
| Sauna volume | 6–12 m³ |
|---|
| Stone capacity | 100 kg |
|---|
| Certification | CE |
|---|
Important: Before ordering, please check local requirements for flue, ventilation and installation.
Installation note: Before final installation, the heater should be burned outdoors for approximately
30 minutes to burn off the factory paint.
Safety recommendation: Place a non-combustible base under the heater, such as a stone or concrete slab.
Recommended size approx.
60 × 40 cm, typical thickness
7–10 cm.
Please note: Sauna stones (100 kg) are not included and must be purchased separately.
Summary: This 11.5 kW grid heater is a high-quality solution for customers looking for soft steam,
elegant design and quality workmanship.
Manuals
Assembly and operating instructions to download.
Wood-burning heater assembly instructions
PDF · 20.6 MB
